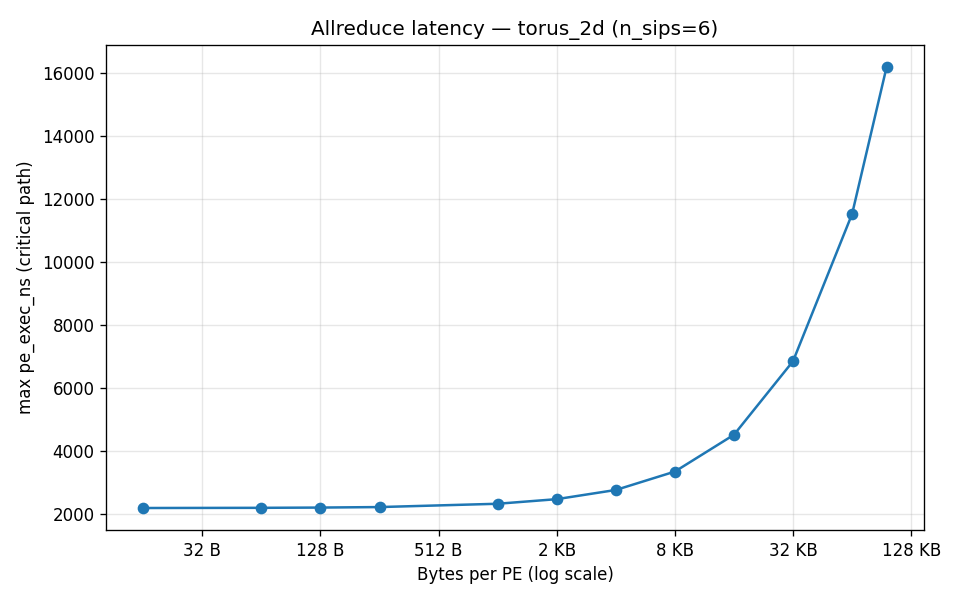

mukesh 04c912f53e Allreduce sweep: parametrized + xdist parallelism + topology diagram ...

Refactor the latency sweep from one giant test into 36 parametrized
cases that run in parallel under xdist (~6-8x faster: 1:49 instead of
~10 min). Each case writes a JSON row to a staging dir; conftest
sessionfinish hook aggregates rows on the controller node into
summary.csv and the per-topology + overview plots.

Aggregator gains a CSV fallback so plot-only tweaks no longer require
re-running the sweep.

Overview plot updates:
- 96 KB explicit x-axis marker with vertical dotted line
- horizontal theoretical 2D-torus reference (10600 ns)
- annotation showing both theoretical and simulated values at 96 KB
- drop overlapping 128 KB tick

New topology.png: 2x2 panel diagram showing device-level topology
(ring, torus 2x3, mesh 2x3) and the cube-level reduction inside SIP 0.
Wrap arrows anchor on box edges and arc outside rows/columns so they
do not overlap any SIP.

Co-Authored-By: Claude Opus 4.7 (1M context) <noreply@anthropic.com>

2026-04-27 16:43:19 -07:00

41 KiB

960x600px

Raw History
